The Process:

Bring Precision and Speed to Your Projects with 3D Scanning and Reverse Engineering

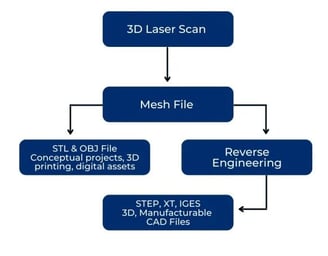

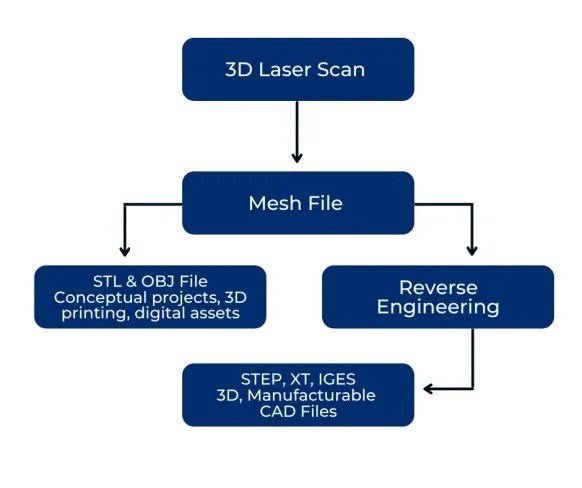

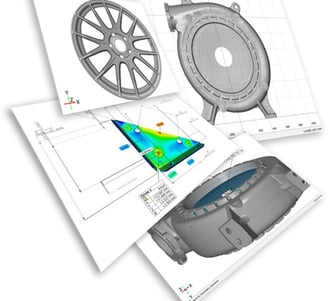

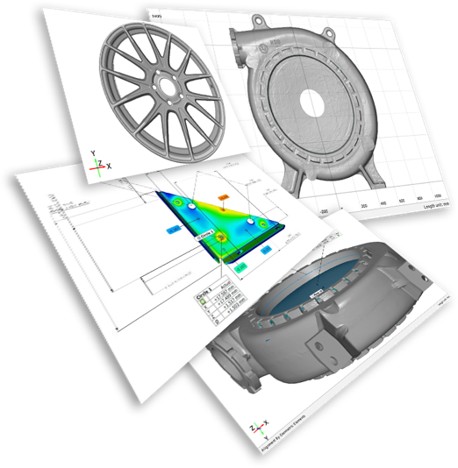

At Gulf Coast 3D Scanning, we use advanced 3D laser scanning technology to capture every detail of your part, product, or physical space—down to the finest measurement. The process begins with a non-contact scan that generates a high-resolution mesh file, creating a digital replica of your object. From there, we offer two powerful paths: the mesh can be used directly as an STL or OBJ file for 3D printing, conceptual projects, or digital visualization—or we can take it a step further through reverse engineering. This transforms the scan into a fully editable CAD file in formats like STEP, XT, or IGES, giving you a manufacturable model ready for design updates, quality control, or part reproduction. Whether you’re working with legacy parts, need to reduce design time, or want to eliminate costly guesswork, our scanning solutions help you move faster, work smarter, and make better decisions—all with incredible accuracy.

What does this process look like?

Below is a real life example of what the reverse engineering process looks like, utilizing 3D scanning to aide in product development for the plug.

Actual Part is 3D Scanned

Actual part, prototype component, or assembly is prepared for 3D scanning to capture the "Actual" geometry of the component for design and inspection purposes.

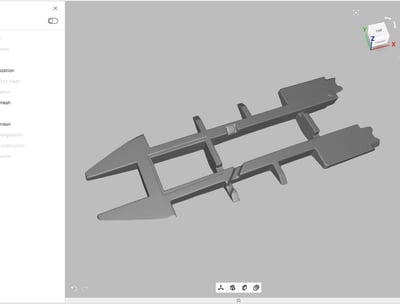

3D Scan Data is developed for use in reverse engineering.

3D scan data is cleaned up. If multiple scan files are taken they are merged together to develop a 3D polygonal model. (While not recommend, these STL files can be 3D printed for use.)

3D scan data is used for reverse engineering purposes to design the 3D CAD file (STEP or IGES) which will be used for manufacturing purposes.

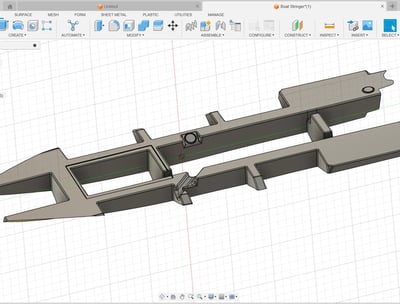

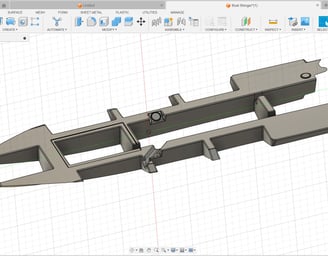

CAD model is developed.

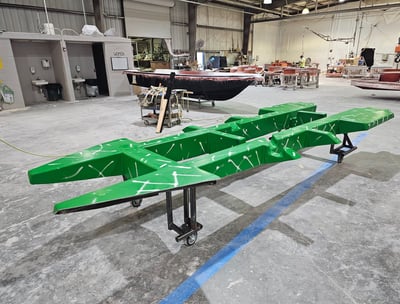

Bringing Products to Market!

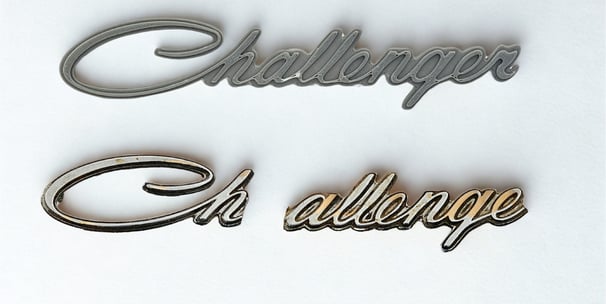

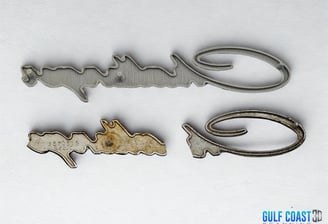

Below is an emblem off of a 1971 Dodge Challenger that was bent, broken, and even missing a portion of the original, which the client wanted to be able to reproduce.

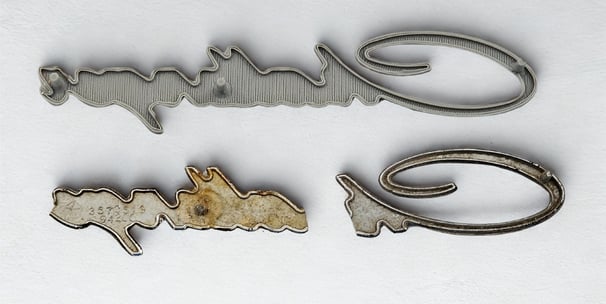

Rear Mounting points of the Emblem.

Two out of three mounting pegs on the original emblem were broken or missing all together. These had to be located for the vehicle and properly designed into the emblem.

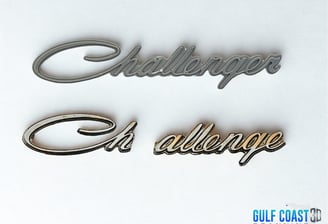

Front Side of Challenger Emblem.

This emblem utilized a combination of 3D scan data and 2D images to sketch out and design the emblem correctly. The top emblem is 3D printed as a prototype to verify design, fit, and function.

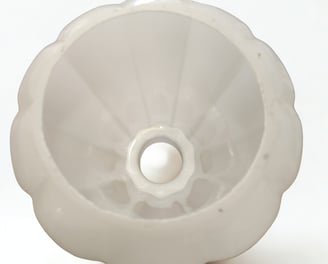

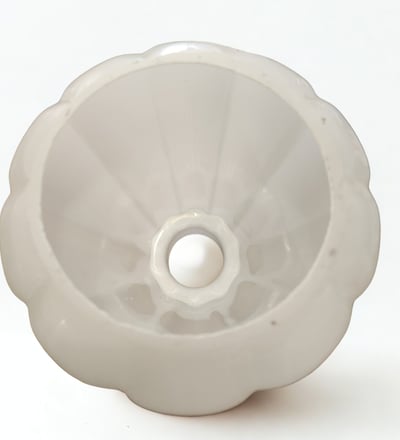

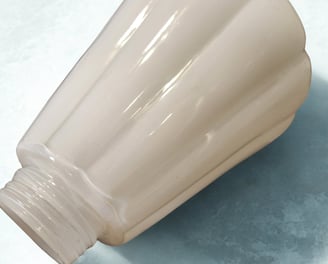

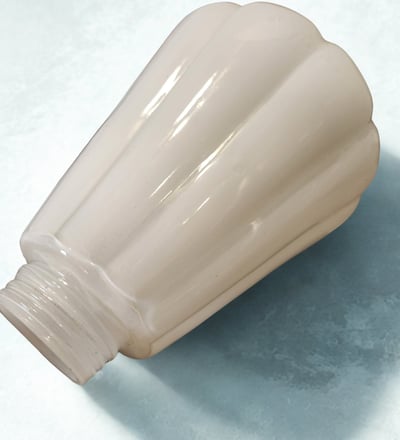

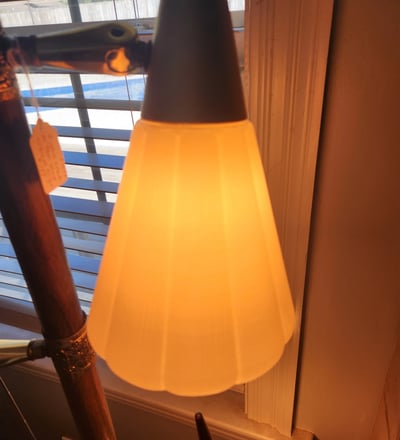

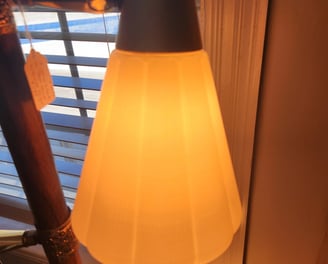

Antique Lamp Shade

This Antique lamp was shipped from an out of state location and arrived with several lamp shades broken. Since this item is no longer in production or available for sale, one of the original lamp shades was 3D scanned, we developed a solid model utilizing the scan data, and then 3D printed a replacement lamp shade for the client.

Supply Chain Challenges We Address:

Problem:

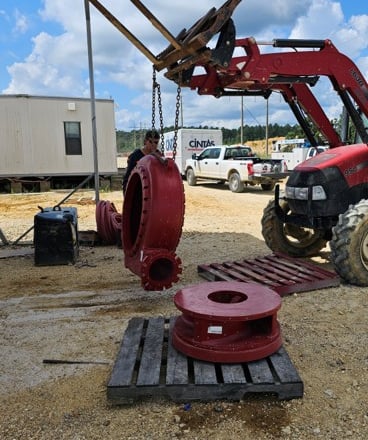

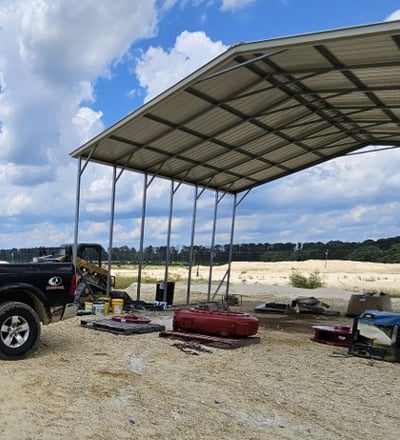

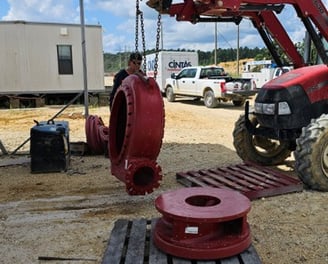

• Supplier for slurry pump components (Post Pandemic) dramatically increased pricing.

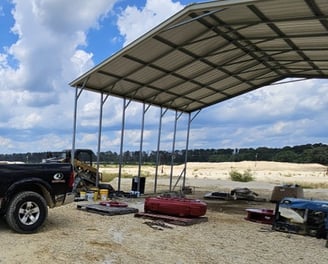

• Dredges are often custom built units, leaving no options for alternate pump suppliers.

• Pump Supplier new this, and was unwilling to negotiate on pricing forcing the client to pay the premium or shut down their operation.

Solution:

• The client made one last order for pump components.

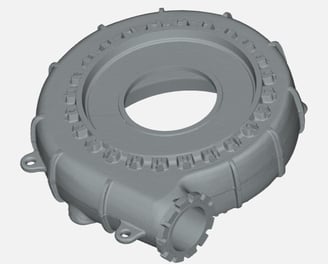

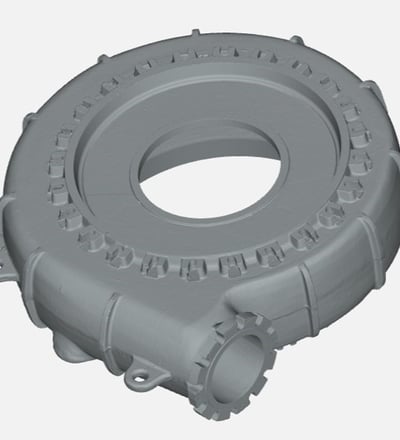

• All pump components were 3D scanned and reverse engineered to have manufactured with a lower cost provider.

• Thicker side walls, different material and heat treatment was selected for the newly manufactured pumps.

• Newly designed pumps are now lasting 3 times longer with lower cost than pre-pandempic levels!

Summary of Benefits!

• Faster product development: Capture physical data without starting from scratch.

• Cost savings: Avoid costly redesigns and rework.

• Improved accuracy: Minimize human error in manual measurement.

• Legacy documentation: Digitize parts that lack existing CAD data.

• Enhanced quality control: Detect deviations early in the manufacturing process.

• Streamlined reverse engineering: Recreate complex parts with precision.

• Better fit and alignment: Ensure assemblies meet exact tolerances.

• Reduced downtime: Quickly assess wear, damage, or tooling needs.

• Design validation: Compare as-built parts to original design intent.

• Improved communication: Share detailed 3D data across teams and suppliers.

• Support for additive manufacturing: Generate printable models directly from scans.

• Inventory and asset management: Create digital records of physical components.

• Rapid prototyping: Translate scanned data into prototypes quickly.

• Improved customer satisfaction: Deliver more accurate, tailored products.

• Data-driven decision making: Use high-fidelity models to guide design and manufacturing choices.
